Project Description

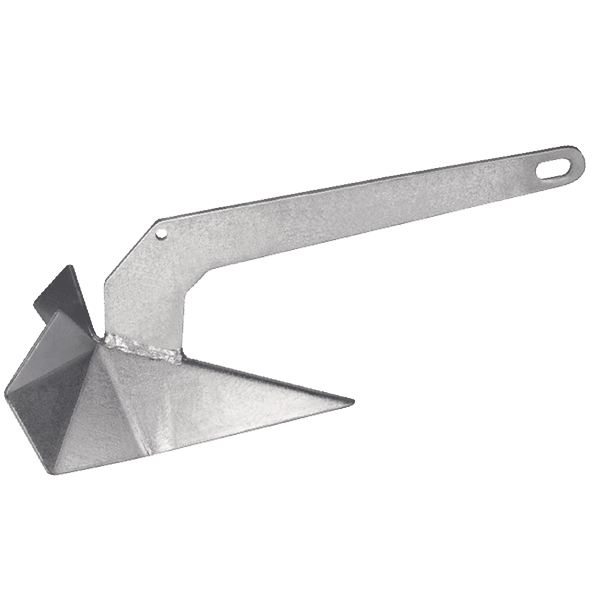

DELTA ANCHOR
Product Details:
- One-piece shank design and ballasted tip for immediate setting
- Anchor weight: 5kg to 1000kg
- Material: stainless steel 316L, Q235
- Finishing: mirror-polishing, hot-dip galvanized
- Applications: performs well in grass, rock, sand and weeds
- Certificate: ABS/LR/BV Type approval
- Customized design is available
For more information and ex-stock availability, contact one of our sales engineer to help you choose the fittings suitable for your vessel. Please check our website for deck machinery, chains, anchors, etc.

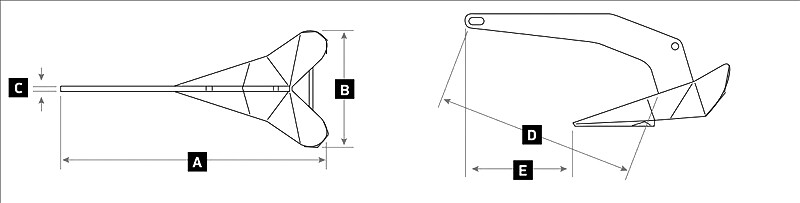

| Weight | Recommended Chain Size | Sizes (mm) | ||||||
| kg | lb | mm | in | A | B | C | D | E |
| 4 | 9 | 6~7 | 1/4 | 514 | 228 | 8 | 387 | 210 |
| 6 | 14 | 6~7 | 1/4 | 595 | 263 | 10 | 450 | 241 |
| 10 | 22 | 8 | 5/16 | 695 | 308 | 12 | 526 | 283 |
| 16 | 35 | 8 | 5/16 | 812 | 360 | 12 | 614 | 334 |
| 20 | 44 | 10 | 3/8 | 877 | 389 | 16 | 663 | 361 |
| 25 | 55 | 10 | 3/8 | 945 | 417 | 16 | 713 | 384 |
| 32 | 70 | 10 | 3/8 | 1026 | 455 | 16 | 774 | 417 |
| 40 | 88 | 10 | 3/8 | 1099 | 489 | 20 | 835 | 446 |
| 50 | 110 | 12 | 1/2 | 1175 | 520 | 20 | 890 | 479 |
| 63 | 140 | 12 | 1/2 | 1278 | 568 | 22 | 973 | 518 |
