Project Description
CHOCK
Product Features:
- For Marine Deck and Bulwark Mounted;
- Material: Casting steel ZG230-400;
- SWL8kN to SWL3000kN;
- IACS approved quality to withstand all conditions. BV, ABS, LRS, DNV, RS, IRS, CCS, KR, NK is available.
- We could also provide you with a customized design with CAD drawings.
For more information and ex-stock availability, contact one of our sales engineers to help you choose the fittings suitable for your vessel. Please check our website for deck machinery, chains, anchors, etc.
DIN81915 TYPE C CHOCK
- Type: Deck Mounted
- Material: cast steel
- SWL: 20KN/30KN/50KN/80KN/120KN/200KN/320KN
- Finishing: one layer of shop primer after sandblasting 2.5
DIN81915 TYPE A CHOCK
- Type: Bulwark Mounted
- Material: cast steel
- SWL: 20KN/30KN/50KN/80KN/120KN/200KN/320KN
- Finishing: one layer of shop primer after sand blasting 2.5
ISO13729 MOORING CHOCK – DECK MOUNTED
- Type: Deck Mounted Type A
- Size: 250×200/300×250/350×250/400×250/450×250/500x250A/500x250B
- SWL:353KN/491KN/589KN/736KN/981KN/1128KN/1373KN
- Finishing: one layer of shop primer after sand blasting 2.5
ISO13729 MOORING CHOCK- TYPE B
- Type: Bulwark Mounted Type
- Size: 250×200/300×250/350×250/400×250/450×250/500x250A/500x250B
- SWL:353KN/491KN/589KN/736KN/981KN/1128KN/1373KN
- Finishing: one layer of shop primer after sandblasting 2.5

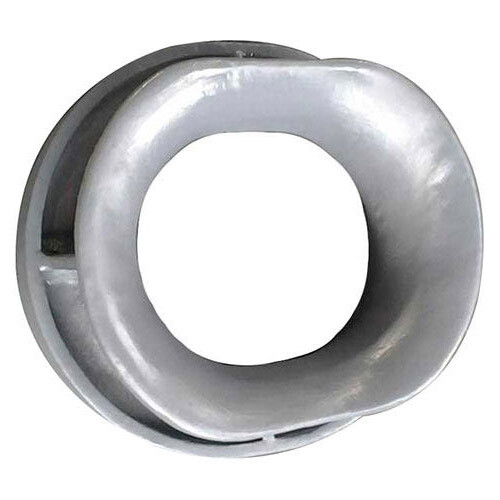

JIS F2007 MOORING PIPE TYPE A
- Type: Bulwark Mounted Mooring Pipe
- Size: 150/200/250/300/350/400/450/500
- Finishing: one layer of shop primer after sand blasting 2.5

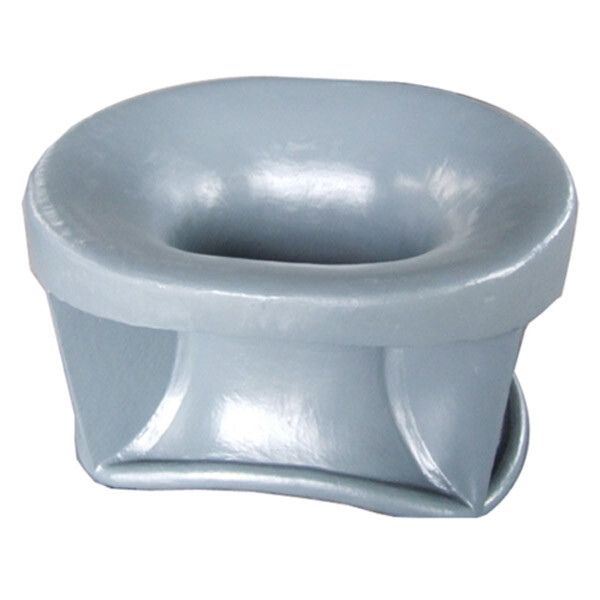

JIS F2007 MOORING PIPE TYPE B
- Type: Bulwark Mounted Mooring Pipe
- Size: 150/200/250/300
- Finishing: one layer of shop primer after sand blasting 2.5

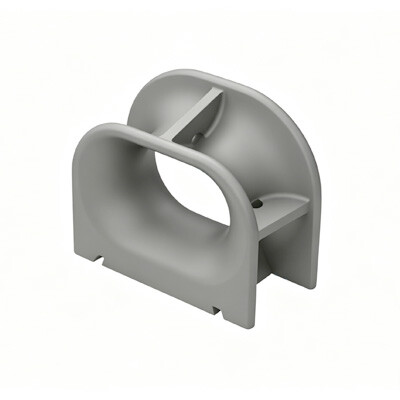

JIS F2017 PANAMA CHOCK – AC TYPE
- Type: Deck mounted AC type;
- Size: 310x260mm, 360x260mm, 400x260mm, 450x260mm, 500x260mm
- Finishing: one layer of shop primer after sand blasting 2.5

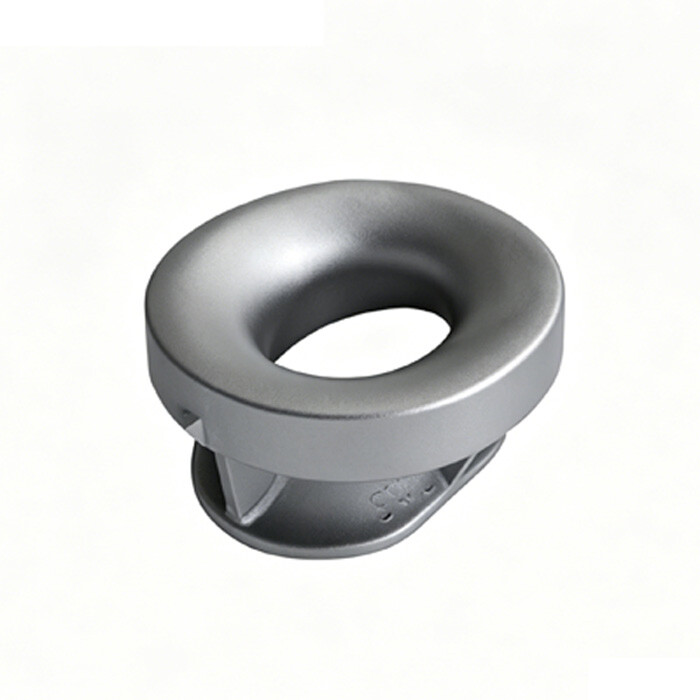

JIS F2017 PANAMA CHOCK – BC TYPE
- Type: Bulwark mounted BC type;
- Size: 310x260mm, 360x260mm, 400x260mm, 450x260mm, 500x260mm
- Finishing: one layer of shop primer after sand blasting 2.5

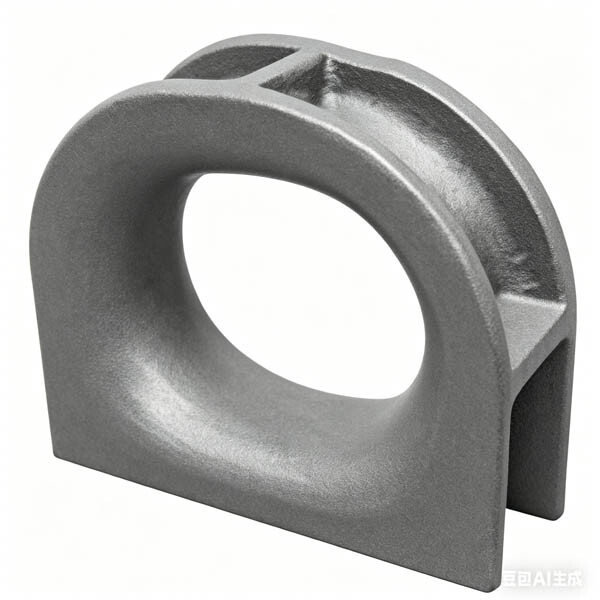

JIS F2005 CLOSED CHOCK
- Type: Deck Mounted Mooring Pipe
- Size: 100/150/200/250/300/350/400/450/500
- Finishing: one layer of shop primer after sandblasting 2.5

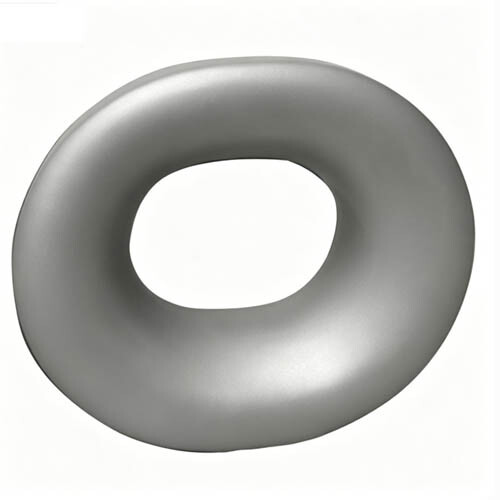

JIS F2030 CLOSED CHOCK TYPE A & B
- Type: Bulwark Mounted Mooring Pipe / Single Point
- Size: 400/500/600/700/800
- Finishing: one layer of shop primer after sandblasting 2.5

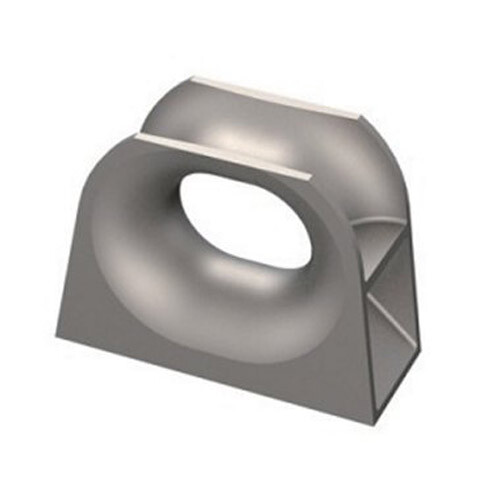

EU TYPE DECK MOUNTED TOWING CHOCK
- Type: Deck Mounted
- Size: 315 x 250/400 x 25/600 x 450/800 x 600
- SWL: 700kN, 1020kN, 2000kN, 2500kN
- Finishing: one layer of shop primer after sandblasting 2.5

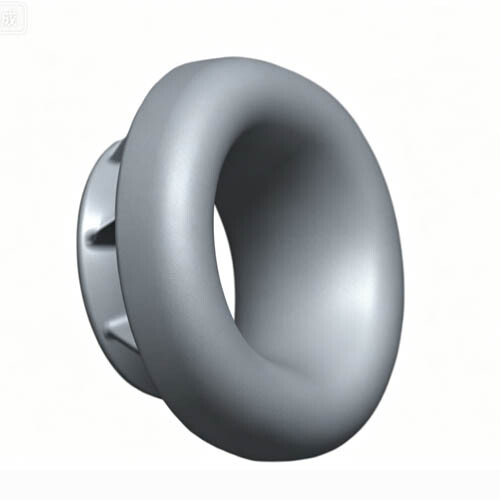

EU TYPE BULWARK MOUNTED TOWING CHOCK
- Type: Bulwark Mounted
- Size: 315x250mm to 1000x800mm
- SWL: 700kN, 1020kN, 2000kN, 2500kN
- Finishing:shop primer after sand-blasting 2.5

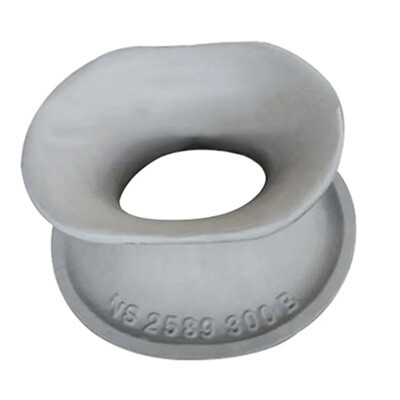

NS2589 TYPE MOORING CHOCK
- Type: Bulwark Mounted Mooring Pipe
- Size: 300×250 / 400×250
- SWL: 45Ton / 63Ton
- Finishing: one layer of shop primer after sandblasting 2.5

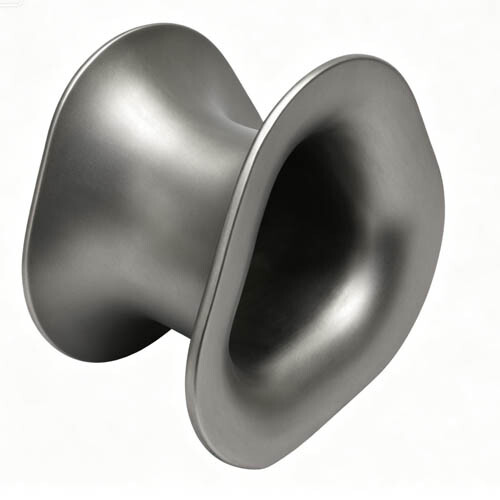

TRIANGLE TYPE MOORING CHOCK
- Application: towing on deck with towing bitts
- Finishing: cast steel, normally with SS316 plate on surface for protection
