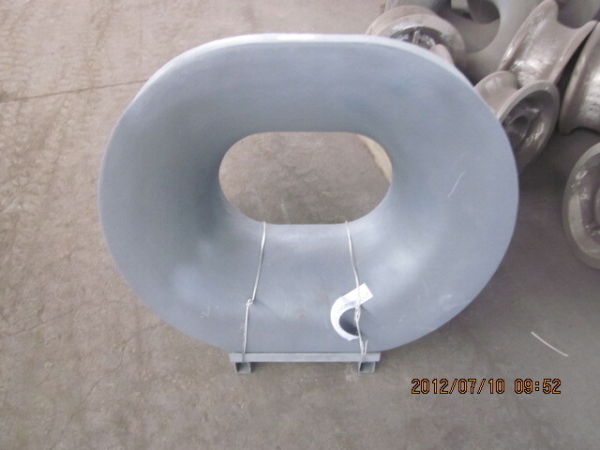

PANAMA CHOCK – DIN81915 TYPE A BULWARK MOUNTED
Product Features:
- DIN81915 Bulwark Mounted Type
- Materials Used: ZG230-450 (equivalent to SC450, GS45)
- Safe Working Load (SWL): Ranges from 20 kN to 320 kN
- Finishing Details: Features a 2-layer shop primer applied after sandblasting, followed by an external anti-corrosion protective coating.
- Certification: Complies with DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK standards.
- Customization: Custom design options are available to meet specific requirements.
For more information and ex-stock availability, contact one of our sales engineers to help you choose the fittings suitable for your vessel.For other Marine items, please check our website for deck machinery, chains, anchors, etc.

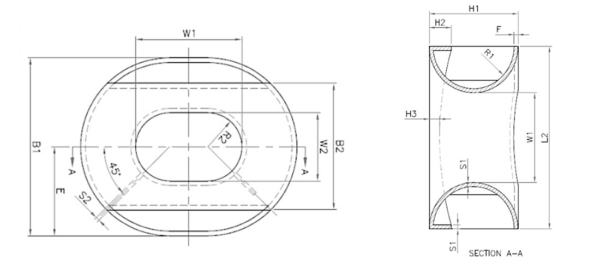

| Dimensions (mm) | Weight (Kg) | ||||||||
| Model | SWL | B1 | E | F | H1 | L2 | W1 | W2 | |
| A2 | 20KN | 315 | 157.5 | 18 | 200 | 360 | 160 | 115 | 30 |
| A3 | 30KN | 390 | 195 | 21 | 250 | 450 | 200 | 140 | 50 |
| A5 | 50KN | 480 | 240 | 24 | 300 | 550 | 250 | 180 | 85 |
| A8 | 80KN | 585 | 292.5 | 27 | 360 | 680 | 320 | 225 | 140 |
| A12 | 120KN | 710 | 355 | 30 | 440 | 840 | 400 | 270 | 210 |
| A20 | 200KN | 840 | 420 | 33 | 520 | 1020 | 500 | 320 | 320 |
| A32 | 320KN | 1100 | 550 | – | 700 | 1300 | 600 | 400 | 800 |
- PDF DOWNLOAD
- Contact Us for Details !
Manufacturing Requirements:
- All surfaces of the closed chocks including welding are to be free from any visible flaws or imperfections.
- All surfaces in contact with the ropes are to be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion.
