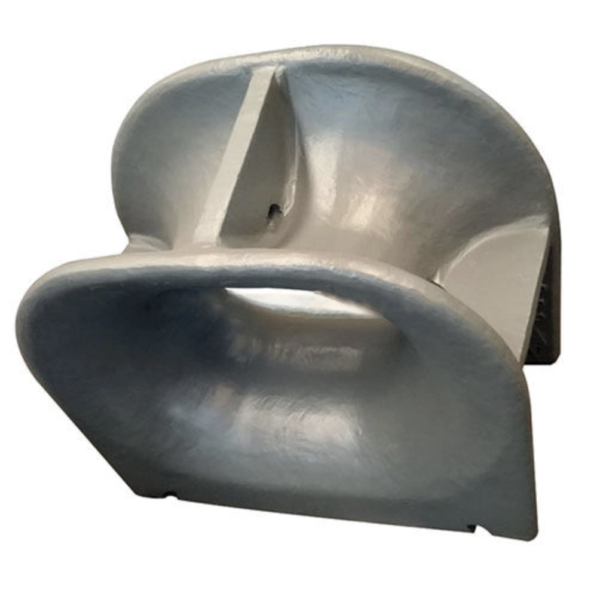

ISO13728 PANAMA CHOCK DECK MOUNTED TYPE A

Product Features:
The ISO13728 Panama Chock is an essential marine hardware component designed for safe and efficient mooring operations in ports worldwide. Certified to meet international ISO 13728 standards, these heavy-duty chocks provide superior load-bearing capacity and corrosion resistance for demanding maritime applications.
- IACA certified, with LR, BV, ABS, DNV, NK, CCS.
Materials: Carbon steel, stainless steel (316 or 304)
Working Load Limit: From 50T to 80T (custom capacities available)
For more information and ex-stock availability, contact one of our sales engineers to help you choose the fittings suitable for your vessel. Please check our website for other chocks, mooring items, deck machinery, chains, anchors, etc.

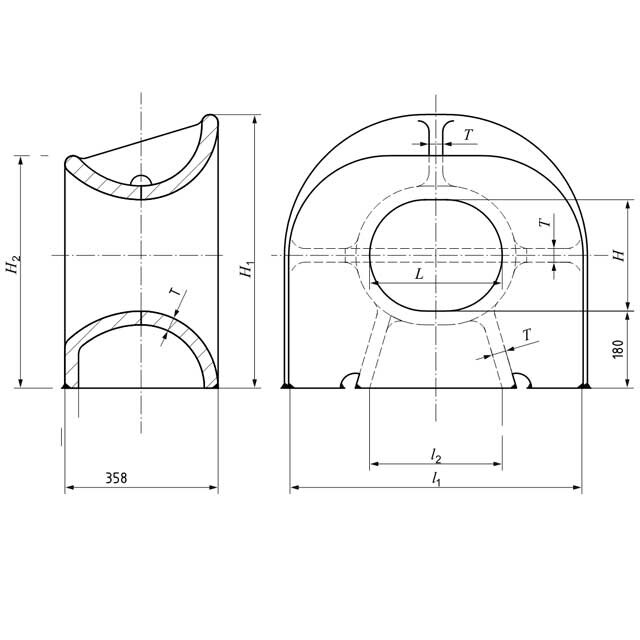

| ISO13728 Deck Mounted Panama Chock (Type A) | |||||||||
| Nominal Size (mm) | L | l1 | H | H1 | H2 | T | SWL | Weight (kg) | |
| (kN) | (t) | ||||||||
| 310 | 310 | 720 | 260 | 670 | 453 | 25 | 687 | 70 | 228 |
| 360 | 360 | 770 | 260 | 670 | 456 | 27 | 775 | 79 | 248 |
