MOORING CLEAT BOLLARD

Mooring Cleat Bollard is an economical solution for mooring light commercial vessels. The twin protrusions form a nearly horizontal angle to the ground, which contributes to the strong reliability of the mooring lines.
Product Details & Features:
- Material: ductile iron or cast steel;
- SWL: 15tons to 35tons;
- Multiple mooring line capabilities.
- Model: PFC15-35
- Type: bolted on, or casting in (optional
For more information and ex-stock availability, contact one of our sales engineers to help you choose the fittings suitable for your vessel. Please check our website for other chocks, mooring items, deck machinery, chains, anchors, etc.

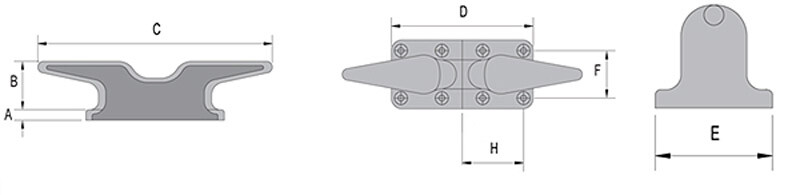

| Type | A | B | C | D | E | F | H | Bolt |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Size | |
| PFC15 | 30 | 165 | 510 | 410 | 220 | 140 | 165 | M20*6 |
| PFC20 | 40 | 180 | 665 | 510 | 280 | 180 | 205 | M24*6 |
| PFC25 | 45 | 210 | 810 | 610 | 310 | 210 | 255 | M24*6 |
| PFC30 | 45 | 250 | 960 | 660 | 310 | 220 | 285 | M24*8 |
| PFC35 | 50 | 270 | 1120 | 840 | 400 | 280 | 360 | M30*8 |
