STAGHORN BOLLARD

Staghorn bollard is a staghorn-shaped type of dock bollard, often referred to as Horn bollard or Twin Horn dock bollard.
Product Details & Features:
- Material: ductile iron or cast steel;
- SWL: 10 Ton to 200 Ton;
- Multiple mooring line capabilities;
- Staghorn (or twin horn) head design to allow higher rope angle and two rope lines to work;
- Model: PFH10-200
- Type: bolted on;
For more information and ex-stock availability, contact one of our sales engineers to help you choose the fittings suitable for your vessel. Please check our website for other chocks, mooring items, deck machinery, chains, anchors, etc.

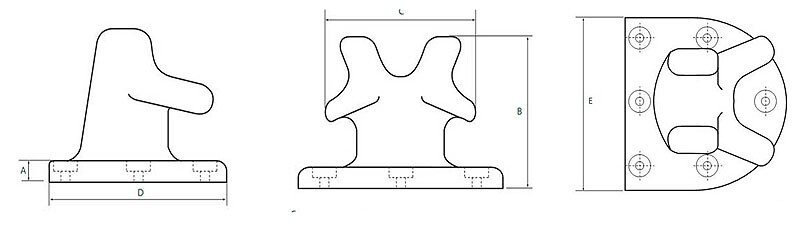

| Model No. | Capacity (T) | Bolts | Dimensions (mm) | ||||
| A | B | C | D | E | |||
| PFH10 | 10 | M24*4 | 41 | 291 | 348 | 330 | 381 |
| PFH15 | 15 | M24*4 | 45 | 320 | 394 | 362 | 419 |
| PFH20 | 20 | M24*5 | 49 | 349 | 430 | 381 | 442 |
| PFH30 | 30 | M30*5 | 55 | 392 | 483 | 429 | 497 |
| PFH50 | 50 | M36*5 | 59 | 419 | 516 | 457 | 530 |
| PFH75 | 75 | M42*6 | 71 | 489 | 627 | 556 | 645 |
| PFH100 | 100 | M42*7 | 81 | 559 | 717 | 635 | 737 |
| PFH125 | 125 | M48*7 | 90 | 615 | 788 | 699 | 810 |
| PFH150 | 150 | M48*7 | 98 | 671 | 860 | 762 | 884 |
| PFH200 | 200 | M56*8 | 102 | 699 | 896 | 794 | 921 |
