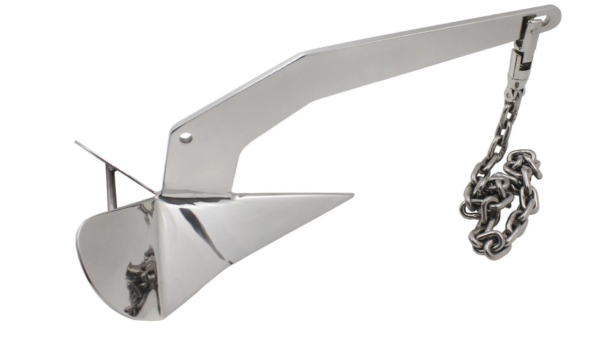

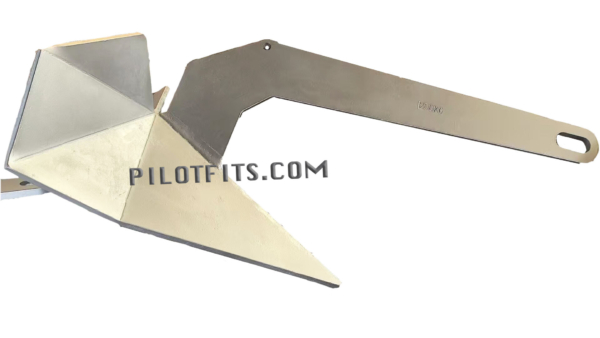

DELTA ANCHOR
Key Features:
The delta anchor is a high-performance marine anchor widely used for yachts, workboats, commercial vessels, and offshore applications. It features a one-piece shank design and ballasted tip to ensure immediate setting on various seabeds including sand, rock, grass, and weeds.
- One-piece shank design and ballasted tip for immediate setting
- Anchor weight: 5kg to 1000kg
- Material: stainless steel 316L, Q235
- Finishing: mirror-polishing, hot-dip galvanized
- Certificate: ABS/LR/BV Type approval
- Customized design is available
Applications:
Delta anchors perform reliably in all seabed conditions, making them suitable for:
- Yachts and leisure boats
- Workboats and fishing vessels
- Small to medium commercial ships
- Offshore and marine projects
For more information and ex-stock availability, contact one of our sales engineers to help you choose the fittings suitable for your vessel. Please visit our website for information on deck machinery, chains,HHP anchors, and other related items.
Technical Specifications
| Weight | Recommended Chain Size | Sizes (mm) | ||||||
| kg | lb | mm | in | A | B | C | D | E |
| 4 | 9 | 6~7 | 1/4 | 514 | 228 | 8 | 387 | 210 |
| 6 | 14 | 6~7 | 1/4 | 595 | 263 | 10 | 450 | 241 |
| 10 | 22 | 8 | 5/16 | 695 | 308 | 12 | 526 | 283 |
| 16 | 35 | 8 | 5/16 | 812 | 360 | 12 | 614 | 334 |
| 20 | 44 | 10 | 3/8 | 877 | 389 | 16 | 663 | 361 |
| 25 | 55 | 10 | 3/8 | 945 | 417 | 16 | 713 | 384 |
| 32 | 70 | 10 | 3/8 | 1026 | 455 | 16 | 774 | 417 |
| 40 | 88 | 10 | 3/8 | 1099 | 489 | 20 | 835 | 446 |
| 50 | 110 | 12 | 1/2 | 1175 | 520 | 20 | 890 | 479 |
| 63 | 140 | 12 | 1/2 | 1278 | 568 | 22 | 973 | 518 |
Material & Finishing Options:
Hot Dip Galvanized Steel & Stainless Steel
