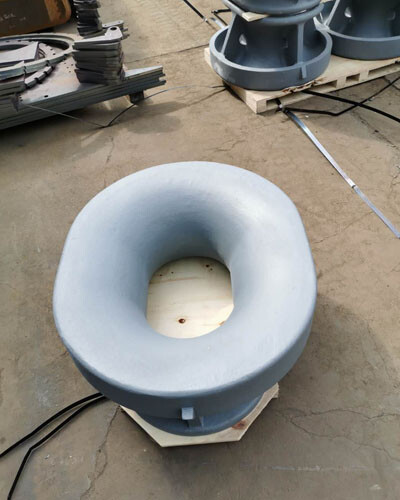

JIS F-2017 BC Type Bulwark Mounted Panama Chock
Product Features:
- Bulwark Mounted Type
- Material: cast steel
- Size: 310mm, 360mm, 400mm, 450mm, 500mm
- Capacity: SWL30Ton to SWL100Ton
Material & Surface Finishing:
- Stainless steel chock liner could be applied as per requirements
- Finishing: 2-layer of shop primer anti-rust painting after sand blasting 2.5
Available International Certifications:
- Certificate: DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK
For more information and ex-stock availability, contact one of our sales engineers ([email protected]) to help you choose the fittings suitable for your vessel. Please check our website for other chocks, mooring items, deck machinery, chains, anchors, etc.
| Nominal Size | SWL | Dimensions (mm) | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit:mm | Ton | L | L1 | L2 | L3 | D | H1 | H2 | H3 | R1 | R2 | K | T | (kg) |
| 310 | 30 | 310 | 212 | 734 | 652 | 38 | 212 | 684 | 462 | 342 | 231 | 15 | 32 | 276 |
| 360 | 40 | 360 | 214 | 788 | 704 | 40 | 214 | 688 | 464 | 344 | 232 | 15 | 34 | 305 |
| 400 | 60 | 400 | 216 | 832 | 750 | 44 | 216 | 692 | 470 | 346 | 235 | 20 | 36 | 344 |
| 450 | 80 | 450 | 218 | 886 | 802 | 46 | 218 | 696 | 474 | 348 | 237 | 20 | 38 | 385 |
| 500 | 100 | 500 | 220 | 940 | 854 | 48 | 220 | 700 | 478 | 350 | 239 | 20 | 40 | 422 |
