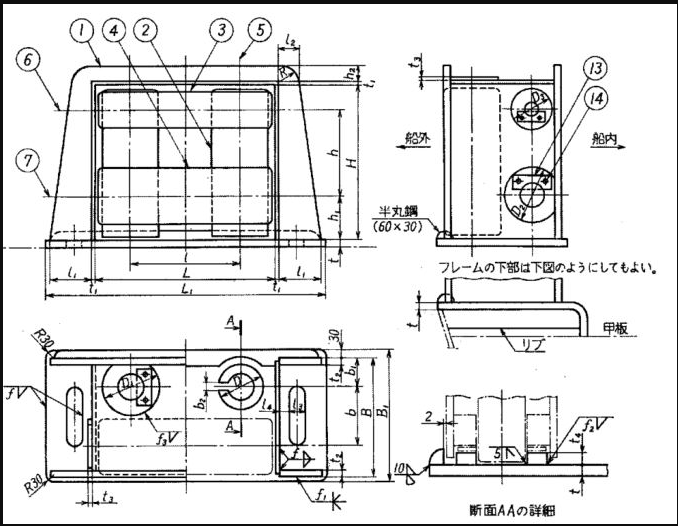

JIS F2026-80 Four Rollers Fairlead Type A
Product Features:
- Type: 4-roller;
- MBL is around the same MBL of the Mooring Line;
- Openning Size: 148×195/149×197/148×196/150×226/194×247/260x295mm;
- SWL: 12T/17T/24T/28T/46T/60T
For more information and ex-stock availability, contact one of our sales engineer to help you choose the fittings suitable for your vessel. Please check our website for other chocks, mooring items, deck machinery, chains, anchors, etc.
| Nominal Dia. | Frame | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | B | B1 | b | b1 | b2 | D | D1 | D2 | H | h | h1 | h2 | L | L1 | l | l1 | l2 |
| 140 | 310 | 355 | 150 | 69 | 20 | 90 | 140 | 120 | 480 | 275 | 130 | 40 | 515 | 805 | 335 | 120 | 60 |
| 160 | 360 | 405 | 175 | 82 | 22 | 110 | 160 | 140 | 515 | 290 | 145 | 45 | 570 | 890 | 365 | 135 | 65 |
| 180 | 410 | 455 | 200 | 95 | 24 | 135 | 180 | 150 | 560 | 315 | 155 | 50 | 620 | 960 | 390 | 145 | 70 |
| 200 | 460 | 505 | 225 | 108 | 26 | 160 | 200 | 160 | 590 | 330 | 170 | 60 | 675 | 1049 | 420 | 160 | 80 |
| 250 | 565 | 610 | 280 | 133 | 30 | 200 | 250 | 200 | 715 | 415 | 195 | 75 | 825 | 1303 | 520 | 210 | 105 |
| 315 | 670 | 715 | 330 | 159 | 34 | 240 | 240 | 240 | 870 | 520 | 220 | 90 | 980 | 1562 | 620 | 260 | 130 |
| Nominal Dia. | Frame | Applicable Wire Rope Dia. | Opening Dia.(Length×Width) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | l3 | R | t | t1 | t2 | t3 | mm | mm | kg |
| 140 | 50 | 40 | 12 | 10 | 16 | 6 | 18 | 148×195 | 214 |
| 160 | 50 | 45 | 14 | 10 | 18 | 8 | 22.4 | 150×200 | 307 |
| 180 | 50 | 50 | 16 | 10 | 20 | 10 | 25 | 150×199 | 410 |
| 200 | 50 | 60 | 18 | 12 | 22 | 10 | 28 | 152×204 | 568 |
| 250 | 60 | 75 | 20 | 14 | 26 | 12 | 35.5 | 199×253 | 1000 |
| 315 | 60 | 90 | 22 | 16 | 30 | 14 | 42.5 | 253×302 | 1620 |
