Project Description

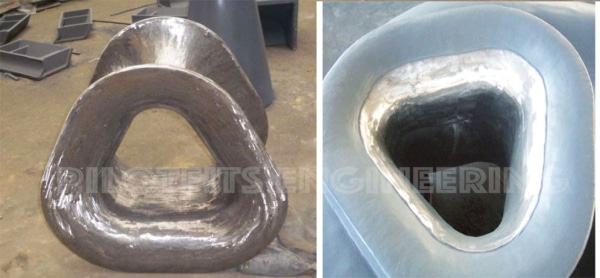

TRIANGLE TYPE TOWING CHOCK
Triangle Type Towing Chock is heavy‑duty closed‑type marine deck hardware, mounted on ship bulwark for towing and mooring operations. Its unique triangular closed‑frame structure prevents rope jumping‑out, delivers high structural rigidity under heavy towing loads. We can supply the chock with optional stainless‑steel wear plate lining for enhanced anti‑corrosion and abrasion resistance. Widely adopted for cargo ships, tugboats, work vessels and offshore support units.
Key Features of Triangle Type Towing Chock:
‑ Closed triangular frame design, avoids mooring / towing rope slipping out
‑ Bulwark welded mounting structure
‑ Material: Cast steel ZG230‑450, optional stainless steel overlay for inner wear surface
‑ SWL range: 70 Ton up to 250 Ton, design load 1.5 × MBL
‑ Surface treatment: sand blasting, anti‑corrosive shop primer, epoxy painting
‑ Documentation: EN 10204 3.1 material certificate
‑ Classification society certificates: DNV‑GL, ABS, LR, BV, CCS available
‑ Custom sizes & custom load capacity upon request
| Nominal Size | Dimensions(mm) | Mass | ||||
|---|---|---|---|---|---|---|
| Unit: mm | w1 | w2 | l1 | b1 | h1 | (kg) |
| 348×388 | 348 | 388 | 860 | 900 | 506 | 540 |
| 420×440 | 420 | 440 | 730 | 800 | 560 | 640 |
| 430×580 | 430 | 580 | 680 | 830 | 588 | 780 |
| * Customized sizes design are available | ||||||
| * For towing on deck with towing bitt | ||||||
| * Surface with 3mm or 5mm SS316L plate for protection | ||||||
