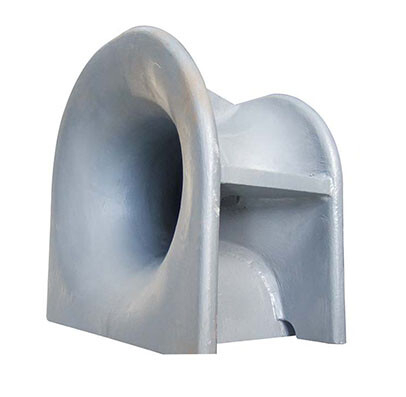

CHOCK – ISO13729 CLOSED MOORING CHOCK -TYPE A

Product Details:

Deck Mounted Closed Type
Size: 250×200/300×250/350×250/400×250/450×250/500x250A
Capacity: SWL22ton to SWL140ton
Finishing: 2-layer of shop primer after sand blasting 2.5
Certificate: DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK

Features & Inspection:

The foundation of the closed chocks is to be determined in consideration of actual load direction. The foundation and welding connections to the hull are to be guaranteed reliable transmission of the maximum loading of the closed chocks to hull construction without any plastic deformation or cracks.
The closed chocks are to be coated externally with an anti-corrosion protective finish.
The closed chocks are to be clearly marked by weld bead or equivalent with its SWL. The SWL shall be expressed in tonnes (letter ‘t’) and be located so that it is not obscured during operation of the fitting.

For more information and ex-stock availability, contact one of our sales engineer to help you choose the fittings suitable for your vessel. Please check our website for deck machinery, chains, anchors, etc.

ENQUIRE NOW

ISO-13729-deck-chock-A-drawing ISO13729 CLOSED MOORING CHOCK TYPE A

Specifications
Download PDF

Specifications

Nominal size (L x H x D)mm	l1	l2	l3	l3	l4	H1	H2	H3	R	R1	R2	R3
250x200x214	488	453	76	76	265	427	368	108	100	219	160	108
300x250x286	614	565	89	89	330	551	481	144	125	282	212	144
350x250x333	716	660	114	114	403	601	525	168	125	308	232	168
400x250x381	820	754	139	139	475	652	553	192	125	335	236	192
450x250x381	870	804	164	164	524	652	553	192	125	335	236	192
500x250x381	920	854	189	189	574	652	553	192	125	335	236	192
400x250x428	870	796	139	139	500	701	609	216	125	360	268	216
450x250x428	920	846	164	164	550	701	609	216	125	360	268	216
500x250x428	970	896	189	189	600	701	609	216	125	360	268	216
500x400x428	970	896	176	176	600	851	759	216	200	435	343	216
500x250x525A	1,068	1,000	190	190	652	798	675	264	125	409	286	264
500x400x525A	1,068	1,000	193	193	652	948	825	264	200	484	361	264
500x250x525B	1,074	1,000	176	176	652	801	680	264	125	412	291	264
500x400x525B	1,074	1,000	179	179	652	951	830	264	200	487	366	264
Nominal size (L x H x D)	R4	R5	R6	T	Welding leg length z1			SWL (kN)	Wire rope diameter mm (Recommend)			Nominal Weight (kg)
250x200x214	86	150	128	22	6			226	18			73
300x250x286	118	180	154	26	6.5			422	24			142
350x250x333	138	200	170	30	7.5			549	28			222
400x250x381	156	250	214	36	9			687	32			310
450x250x381	156	250	214	36	9			706	32			322
500x250x381	156	250	214	36	9			765	32			337
400x250x428	178	250	212	38	9.5			883	36			434
450x250x428	178	250	212	38	9.5			912	36			452
500x250x428	178	250	212	38	9.5			932	36			472
500x400x428	178	250	212	40	9.5			893	36			528
500x250x525A	224	320	280	40	10			1148	44			657
500x400x525A	224	320	280	40	10			1158	44			724
500x250x525B	218	320	274	46	11.5			1413	44			753
500x400x525B	218	320	274	46	11.5			1383	44			825
– A Welding method may be changed based on the same welding volume / strength.
– B SWLs shown in the Table are for reference only. These are based on the loadings as mentioned in Annex A.
“SWL” may be adjusted depending on the actual loading conditions, and the actual marking is to be as per the agreement between the user and the manufacturer.
– C Wire rope diameter (Recommend) is only for reference based on bending ratio of rope through the chock is 12times.
– D Calculated weight is for reference only.
